Is 13.5 x 27.5 x 0.75 the Same as 14x28x1?

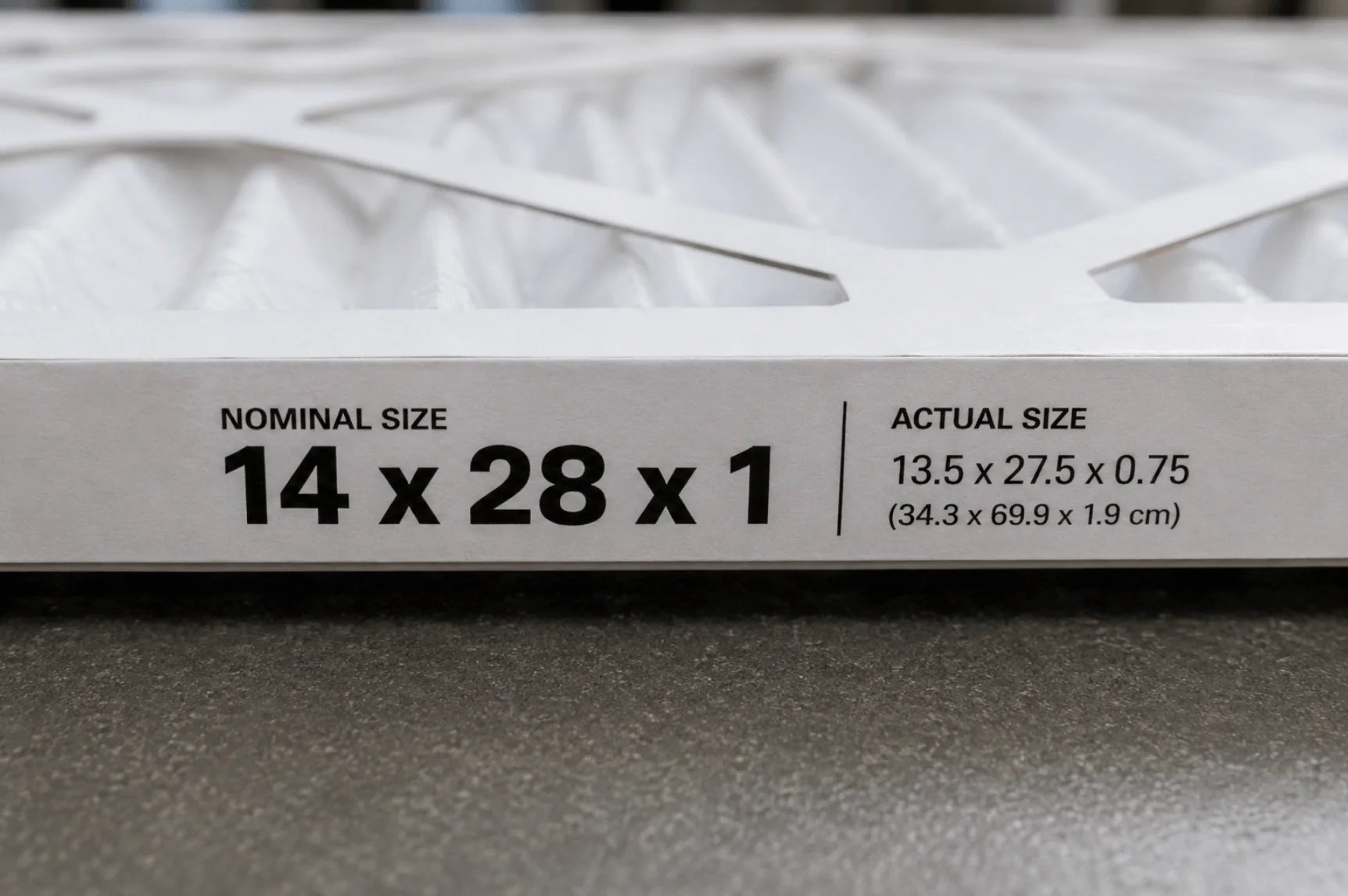

Yes. A filter measuring 13.5 x 27.5 x 0.75 inches is a 14x28x1. The 14x28x1 printed in large type is the nominal size, a rounded label used for ordering. The 13.5 x 27.5 x 0.75 is the actual size, cut smaller so the filter slides in without binding. Order by the nominal size and verify the depth.
Key Takeaways
Nominal is the label. Actual is the tape measure.
Order 14x28x1. Searching "13.5x27.5x0.75" returns almost nothing.
The half-inch undercut is intentional. It lets the filter seat without bowing.
Actual depth on a 1-inch filter varies by brand, from 0.75 to about 0.81 inches.
14x28x1 is absent from the standard one-inch size chart, which is why stores rarely stock it.
Filterbuy is a U.S.-based air filter manufacturer producing residential and commercial HVAC filters in more than 600 nominal sizes, plus custom cuts, in MERV 8, 11, and 13.
Why Is My Air Filter Smaller Than the Label Says?
Because a filter cut to exactly 14 by 28 inches would not go in. If your new filter looks smaller than the one you removed, you were not shorted. Every major manufacturer cuts under the label.
Slots and return grilles are built with a small tolerance, and cardboard frames swell in humidity, which is a daily fact of life in Miami Beach. Cut a filter too tight and the frame binds, bows, or tears going in, opening gaps at the corners. Cut it too loose and unfiltered air bypasses the media, carrying dust straight to the evaporator coil.
The EPA states the requirement plainly in its guide to air cleaners and HVAC filters in the home: the filter must fit snugly, without air leaking around it, and without being bent or crushed to fit.
What Is the Actual Size of a 14x28x1 Air Filter?
Generally 13.5 x 27.5 x 0.75 inches. Face dimensions are consistent across brands. Depth is where you look twice.
Filterbuy publishes its cutting convention in its air filter sizes chart: length and width cut 0.5 inches under nominal, and a 1-inch filter cut to 0.75 inches deep. It also states that this convention is its own, not a published industry standard. The same page proves the point. Sold as the identical 20x25x1 nominal size:
Filterbuy measures 19.50 x 24.50 x 0.75
Amazon Basics measures 19.75 x 24.75 x 0.75
Filtrete measures 19.68 x 24.68 x 0.81
One label, three different filters. That spread is small on paper and obvious in a slot, and it is why the filter that fit last time can bind or rattle when you switch brands. Filterbuy lists actual dimensions alongside the nominal label on its 14x28x1 size page, which is the fastest way to confirm depth before ordering a case.
The Detail Most Pages Miss: 14x28x1 Is an Off-Chart Size
14x28x1 does not appear on the standard one-inch size chart, so its 13.5 x 27.5 x 0.75 actual size is derived rather than published.
Filterbuy's one-inch chart runs 29 rows, from 10x20x1 to 25x25x1. It includes 14x25x1 and 14x30x1, the sizes on either side, but skips 14x28x1. That figure comes from applying the stated rule to a size absent from the table. The math is consistent with all 29 published rows, but it remains an application of a convention rather than a spec printed for this size, which may explain why a product page and a sizing chart can disagree on depth.
It also explains the empty shelf. If you are in a hardware aisle wondering why 14x28x1 is not there, that is your answer, and it is not you. On an off-chart size, measure your slot before ordering and confirm actual depth on the listing you buy from, which is only possible with sellers who publish them.

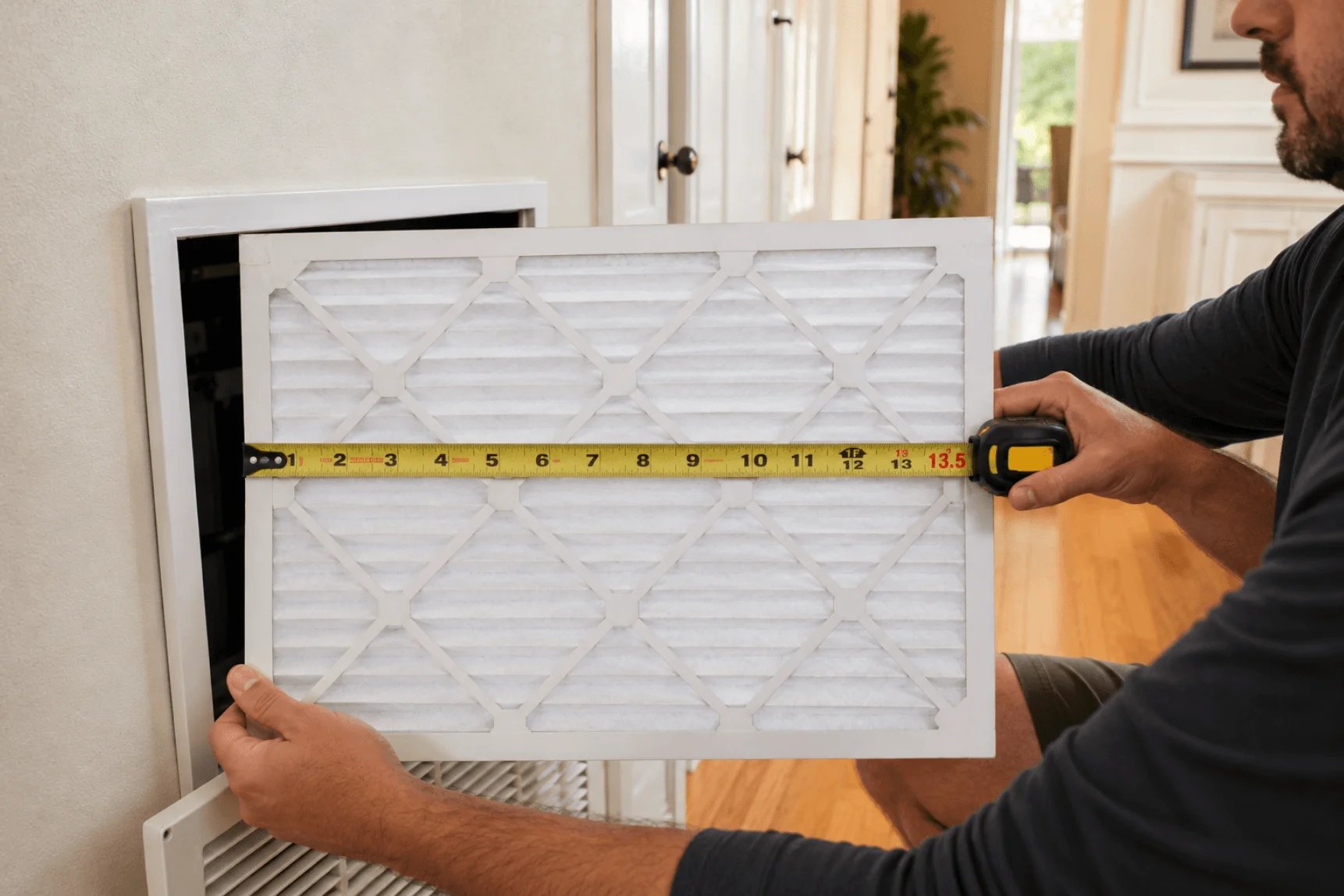

How to Measure an Air Filter Correctly
Measure the face and the depth separately, then round up to the nearest inch to get your nominal size.
Shut the system off at the thermostat before opening the return.
Check the frame first. Most print nominal size in large type and actual size in small type.
Measure the face edge to edge to the nearest 1/8 inch.
Measure the depth separately. Do not assume 1 inch because the label says 1 inch.
Round up. 13.5 x 27.5 x 0.75 rounds to 14x28x1.
One exception. If a dimension lands on a true fraction like 17.5 or 22.25, do not round. A slot within a quarter inch of a whole number takes that nominal size. A slot sitting squarely on a fraction is a custom slot, and rounding either way costs the seal. Round down and air bypasses the gap. Round up and the filter will not seat.
Some charts write the shorter side first, some the longer. For this size the pair is 14 and 28 either way. If the slot is empty, measure the opening and subtract about a half inch from length and width before rounding. Our step-by-step furnace filter walkthrough covers airflow arrows and slot access.
Which Size Do I Order for My Measurement?
Order a 14x28x1 air filter in all three of the readings below. What changes between them is how the filter seats, not the number you buy.
You measured 13.5 x 27.5 x 0.75. Standard. Order a 14x28x1. Because the size is off-chart most sellers skip it; Filterbuy cuts it in MERV 8, 11, and 13.
You measured 13.5 x 27.5 but a full inch deep. Still a 14x28x1. Depth varies by manufacturer within one nominal size and does not change the number you order. Fit does change. If your slot was built around a full-inch filter, a 0.75-inch replacement will have play in it. Press it flat against the slot lip and confirm no daylight at the top edge.
Your slot measures close to 14 x 28. You measured the opening, not a filter. Still order 14x28x1. The slot is meant to run about a half inch larger than the filter. If it measures a true fraction like 13.75, you have a custom opening and should order to exact numbers.
What Not to Do
Do not tape the gaps shut. Sealing the perimeter restricts the return. If a filter sits loose, hold it forward against the flat surface at the front of the slot so airflow presses it into a seal.
Do not stack two thin filters for depth. You double the resistance without doubling surface area.
Do not size up to a 14x28x2. Slot depth decides what your system accepts, and forcing a thicker filter bends the frame toward the blower.
Do not buy a case until the first one seats. Order one, fit it, then set up recurring delivery.
What We See on Miami Beach Service Calls
Depth, not length or width, causes almost all the sizing confusion we get called about. A homeowner orders a "1-inch" filter, it arrives measuring 0.75 inches, and it sits looser than the one that came out. Nothing is wrong with it. The previous filter was cut closer to a full inch by a different manufacturer.
Three things we tell people on the spot: check the seal rather than the number, write the install date on the frame in marker, and never force a tight filter, because a bowed frame opens the corner gaps a snug fit exists to prevent.
"The half inch on the label is the part people ask about. The quarter inch of play at the top of the slot is the part that actually costs them. I have pulled filters that looked spotless because most of the air had been going around them for a year."
Alexandre Alfred, Licensed HVAC Technician
Essential Resources
Filterbuy, 14x28x1 Air Filters. Actual dimensions published beside the nominal label, so you can verify depth before checkout.
Filterbuy, Air Filter Sizes Chart. Full nominal-versus-actual reference plus the three-brand dimension comparison.
Filterbuy, How to Measure Your Air Filter. What to do when the frame printing is gone or the slot lands on a fraction.
U.S. EPA, Guide to Air Cleaners in the Home. The federal standard for fit, MERV selection, and replacement intervals.
ASHRAE, Filtration and Disinfection FAQ. From the body that wrote Standard 52.2, on bypass and on filters that sit loose.
U.S. DOE, Maintaining Your Air Conditioner. What obstructed airflow does to the evaporator coil and to your bill.
ENERGY STAR, Heat & Cool Efficiently. Replacement cadence from the joint EPA and DOE program.
U.S. Department of Energy guidance explains why that matters: when airflow is obstructed, air bypasses the filter and deposits dirt onto the evaporator coil. ENERGY STAR recommends checking monthly and changing at least every three months, and our guide on how often to change a filter in a South Florida home breaks that down by pets, allergies, and runtime.
Supporting Statistics
Americans spend about 90% of their time indoors, mostly at home. Most exposure to airborne pollutants happens inside your own house, and when the system runs your filter is the only thing cleaning that air. Source: U.S. EPA, Guide to Air Cleaners in the Home.
MERV 8 captures about 20% of 1 to 3 micron particles. MERV 13 captures at least 85%. Air routed around a filter is never cleaned at all, so a filter that does not seat performs like a lower MERV whatever the box says. Source: ASHRAE, Filtration and Disinfection FAQ.
Replacing a clogged filter with a clean one cuts an air conditioner's energy use by 5% to 15%. A loose-fitting filter strains the system the same way a dirty one does, and with heating and cooling accounting for nearly half of home energy use, that cost compounds over twelve months in Miami Beach rather than four. Sources: U.S. DOE, Maintaining Your Air Conditioner and ENERGY STAR, Heat & Cool Efficiently.
Glossary
Frequently Asked Questions
Is 13.5x27.5x0.75 the Same as 14x28x1?
Yes. That is the actual measured size of a filter sold under the 14x28x1 nominal label.
Should I Order by the Printed Size or the Measured Size?
Order by the printed nominal size, 14x28x1. Retailers and manufacturers catalog filters by nominal dimensions, not actual ones.
My Filter Measures a Full Inch Deep. Did I Order Wrong?
No. Depth varies by manufacturer within one nominal size. Both are 14x28x1. Confirm it seats flat with no daylight at the top edge.
Should I Tape Around a Filter That Sits Loose?
Do not seal the perimeter, which restricts the return. Hold the filter forward against the flat surface at the front so airflow presses it into a seal.
Why Can't I Find a 14x28x1 in Stores?
It is off-chart. The standard one-inch chart includes 14x25x1 and 14x30x1 but not 14x28x1, so retail shelves skip it.
What if My Measurements Match No Standard Size?
Order a custom cut to your exact dimensions rather than forcing an approximate fit. See our guide to choosing the right air conditioning filter.
Ready to Order?
Measured 13.5 x 27.5 x 0.75? That is a 14x28x1, and you can order the size direct from Filterbuy with actual dimensions listed so you can check depth before you buy.
Still unsure what you are holding? We will measure the slot, confirm your size, and tell you honestly whether an upgrade is worth it.
